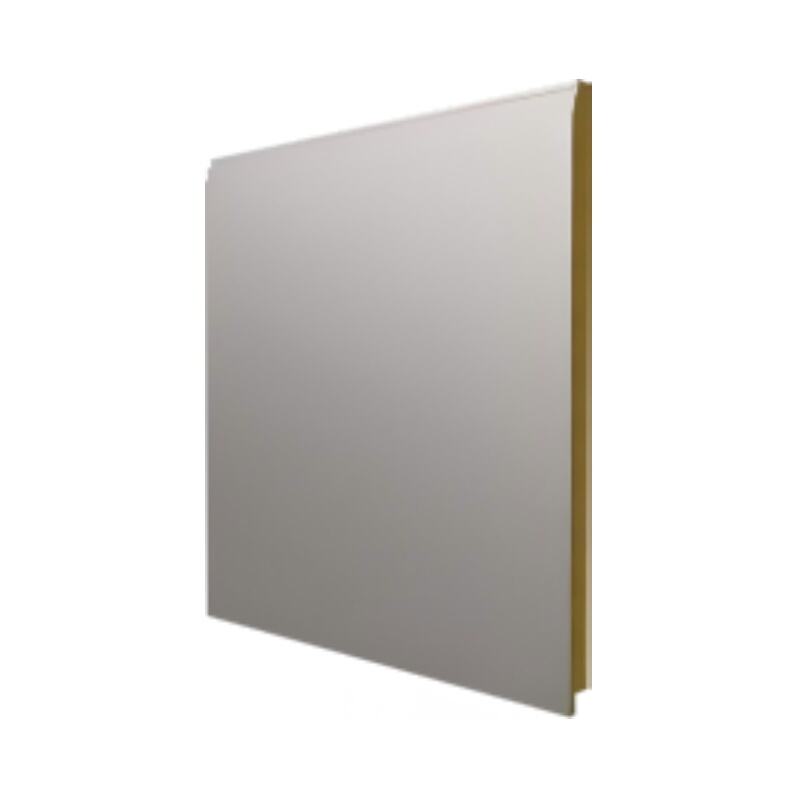

EW Thermal Insulation and Decorative Integrated Sandwich Panel
EW Thermal Insulation and Decorative Integrated Sandwich Panels feature a dovetail joint design, preventing capillary action in the joint cavities. The precise fit of the joints and the sealed end connections ensure superior airtightness and watertightness for the entire wall surface. They offer easy installation, excellent durability, low maintenance costs, a wide variety of colors, and superior thermal insulation, combining exterior wall insulation and decorative functions, thus driving a new transformation in modular construction.
- Overview
- Technical Specifications
- Product Application
- Recommended Products
Product details
- Fire resistance: non-combustible or flame-retardant core materials are employed under building fire protectionregulations. Other fire protection requirements also can be met.
- Thermal insulation and energy-saving: thanks to its superior thermal insulation performance, a 75% required energy reduction level isobtained thereby creating a more comfortable living space.
- Sealing performance: Ensuring the overall airtightness and watertightness of the entire wall through interlocking jointsand sealed end connections.
- Wind resistance:With a special joint design, the composite panel has an excellent resistance to deformation and wind.
- Built tough: side sealing by using PU enhances the overall structural rigidity. facilitates installation, and increases moistureresistance.
- Elegant and beautiful appearance:Decorative seams enhance the layering of the wall surface by providing various visual effects througheither single colors or prints, or embossing
- Easy installation:it's light weightiness is friendly to installation and no construction wastes are produced. Wall surfaceleveling would be unnecessary.
This EW Thermal Insulation and Decorative Integrated Sandwich Panel features precisely engineered dovetail joints, effectively eliminating capillary action and ensuring superior airtightness and waterproofing. Designed for modern modular construction, the EW series Insulated Decorative Sandwich Panel offers easy installation, exceptional durability, and a variety of color options, leading the way to a new era of efficient and aesthetically pleasing building envelopes.
The EW integrated insulation and decorative sandwich panel is a revolutionary innovation. It combines insulation and exterior wall cladding functions into a single, robust composite product, eliminating the need for separate insulation and cladding installations.
Water leakage and air infiltration are major factors affecting building lifespan. The EW series effectively addresses this issue with its precisely engineered dovetail joint design. This classic interlocking mechanism prevents capillary action in the joint gaps. Combined with precise manufacturing processes and sealed end connections, the system ensures a completely sealed wall surface, effectively resisting all kinds of harsh weather conditions. The resulting facade is not only aesthetically flawless but also performs exceptionally well in adverse weather.
Performance Features

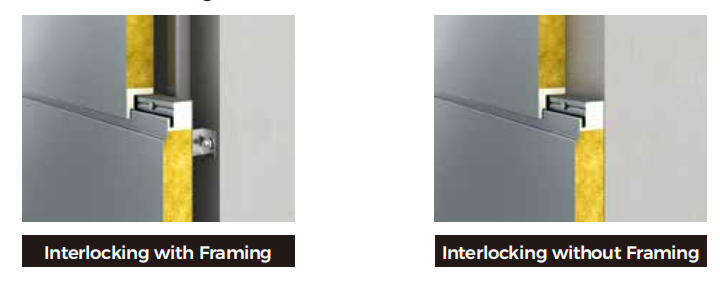

Illustration for the joint
Technical Specifications
Material Characteristics Table
| Size(mm) | Standard panel width: 370, 470 |
| Optional panel width: 350~500 | |
| Panel length: ≤ 15000 | |
| Standard panel thickness: 25~100 | |
| Surface pattern | Surface finishes: Smooth, embossed, mini-corrugated, Lishui corrugated |
| Skin thickness(mm) | Outer steel sheet: 0.5-0.8 Outer aluminum sheet: 0.5-0.8 |
| Inner steel sheet: 0.4-0.6 Inner layer: PVC or aluminum foil, etc. (soft surface layer) | |
| Joint width(mm) | 15 |
| Core material | PU + rock wool, PU + fiberglass wool |
| Core material density(Kg/m3) | Fiberglass wool: 64; Rock wool: 120 |
| Flammability | Class A |
Performance Selection Table
| Core material | Thickness (mm) | Type of Support | Load(KN/m2)/rafter spacing(mm) | Panel weigh(Kg/m2) | Thermal conductivity(W/m2`k) | |||||
| 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | |||||
| Rock wool | 30 | Single-span/multi-span | 3708 | 2488 | 1883 | 1511 | 1257 | 1074 | 15.60 | 1.18 |
| 50 | 5407 | 3717 | 2868 | 2334 | 1962 | 1689 | 18.38 | 0.76 | ||
| 75 | 7226 | 5034 | 3927 | 3223 | 2729 | 2361 | 21.17 | 0.53 | ||
| 100 | 8820 | 6176 | 4838 | 3984 | 3383 | 2934 | 26.74 | 0.40 | ||
| Glass wool | 75 | Single-span/multi-span | 3807 | 2599 | 1995 | 1616 | 1355 | 1163 | 13.09 | 0.94 |
| 100 | 5530 | 3860 | 3015 | 2478 | 2100 | 1819 | 14.63 | 0.60 | ||
| 150 | 7375 | 5210 | 4111 | 3407 | 2907 | 2532 | 16.17 | 0.41 | ||
| 100 | 8995 | 6383 | 5056 | 4204 | 3597 | 3140 | 19.24 | 0.31 | ||
Standard Specifications
1. Facing Material Configuration:
The color-coated steel sheets use Clean Colorbond® steel from BlueScope Steel or equivalent products with the same technical parameters from other steel manufacturers. The surface is coated with a special nano-reinforced polyester coating system, ensuring long-lasting beauty, and uses a substrate with a 20-year corrosion resistance guarantee.
2. Core Material Configuration:
High-quality hydrophobic rock wool, glass wool, EPS, and RMF that meet Glostar's technical specifications are used. The PU uses specialized raw materials from Huntsman, a leading polyurethane chemical company.
3. Adhesive Configuration:
Non-corrosive and environmentally friendly adhesives are used, which do not damage the facing or core materials.
4. Other components are selected according to Glostar's technical requirements.
| substrate | Coating system | Warranty period | Hongxing Standard | ||||
| Material: | Thickness (mm) | Paint | Film thickness | Decorative | Durability | ||
| Aluminum sheet | 3-series aluminum-magnesium-manganese alloy sheet | 0.7-1.0 | Front surface: PVDF inorganic pigment paint, with self-cleaning function | 25um | No color difference due to dust accumulation for 5 years; no significant powdering for 15 years. | 50 years without corrosion or perforation | China Aluminum products, with excellent rust resistance, are suitable for use in humid environments. |
| Color-coated steel sheet | Strength: G280/G300, AZ150 aluminum-zinc coated steel sheet | 0.5-0.8 | Front surface: Special nano-reinforced polyester topcoat, with self-cleaning function | 25um | No color difference due to dust accumulation for 5 years; no significant powdering for 10 years. | 20 years without corrosion or perforation | We use high-quality products from Bluescope and Baosteel, ensuring corrosion resistance and quality. |
Product Application
Modular & Prefabricated Buildings: Perfect for off-site construction due to its integrated nature.
Industrial Facilities: Factories and warehouses requiring fast enclosure and fire protection.
Commercial Complexes: Shopping malls and office blocks needing aesthetic appeal and energy efficiency.
Public Infrastructure: Schools, hospitals, and transportation hubs.
Experience the transformation. Choose the EW Thermal Insulation and Decorative Integrated Sandwich Panel for a wall system that is stronger, faster to build, and visually stunning.
Contact us today for color charts, technical specifications, and project consultation.
